CNC Workholding Secrets: How It Defines Precision Part Quality

When engineers and buyers search for CNC machining partners in China, they usually ask about machine specs, tolerances, or material capabilities. But there’s one factor most people overlook until it causes problems: CNC workholding.

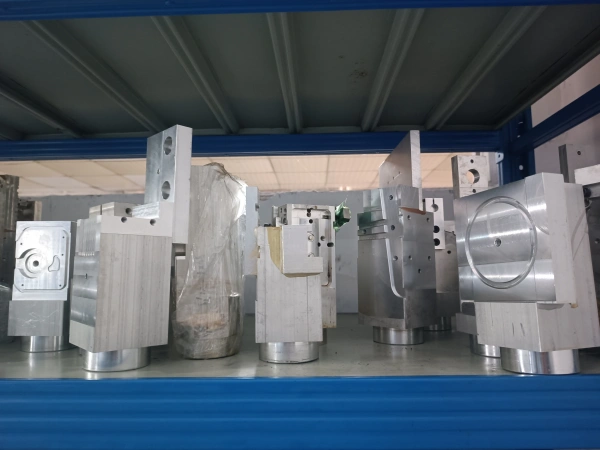

Precision workholding fixtures in our workshop, designed for stable clamping of complex-shaped parts

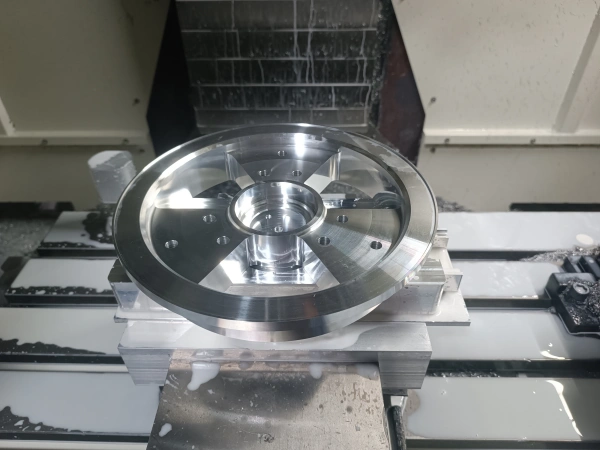

Modular and magnetic-style workholding fixtures, supporting ferrous parts and fast changeovers

At Dongguan Huade Precision Manufacturing (Huade), we are very clear: we do not sell fixtures, vises, clamps, or any workholding hardware. We are a precision CNC machining factory focused on custom prototypes, complex geometries, and low-to-medium volume production. However, our internal expertise in designing and building custom CNC workholding solutions is exactly what allows us to consistently achieve tolerances, surface finishes, and repeatability that many shops struggle to deliver.

Here’s why workholding is often the deciding factor in whether a part succeeds or fails — and how we turn it into a real advantage for our clients.

The Real Cost of Poor Workholding

Every cutting operation generates significant force. If the workpiece moves, vibrates, or deflects — even by 0.005–0.01 mm — you get:

• chatter marks and poor surface finish
• out-of-tolerance dimensions
• scrapped parts
• wasted time and material

Standard vises and off-the-shelf clamps are fine for simple blocks or large flat stock. But they quickly fail when parts have:

• thin walls that bow or warp
• complex curves with no flat clamping surfaces
• delicate materials (aluminum, copper alloys, engineering plastics)
• 5-axis requirements where clamps block tool paths

We treat workholding as a core engineering discipline — not an afterthought. Our team designs and manufactures custom CNC workholding fixtures specifically for each project to maximize rigidity, accessibility, and consistency.

Solving “Can’t Hold It” Challenges

We regularly receive parts that other factories refused, saying “impossible to hold securely.”

For complex shapes like aerospace manifolds, ergonomic housings, or curved medical components, we use custom soft jaws machined to mirror the exact negative profile of your part. This delivers:

• even clamping force distribution → no dents or deformation
• near-zero vibration → excellent surface finish straight off the machine
• repeatable loading → consistent results from part 1 to part 1000

5-Axis CNC Workholding: Fewer Setups, Tighter Tolerances

In 5-axis machining, the goal is to access five sides in as few setups as possible. Bulky clamps cause collisions, force long tool overhangs, and introduce stack-up errors.

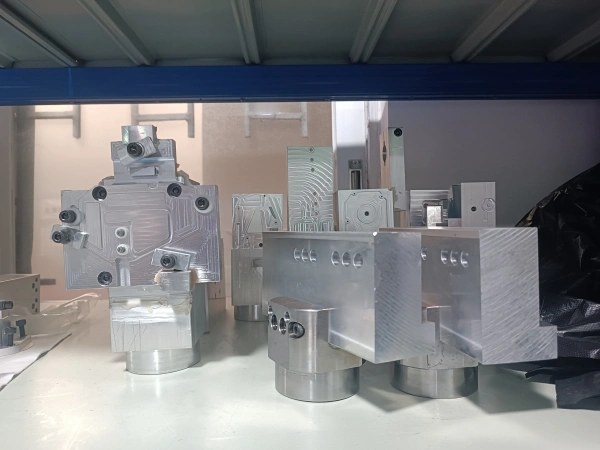

Custom CNC workholding fixtures stored in our workshop, tailored for different part geometries

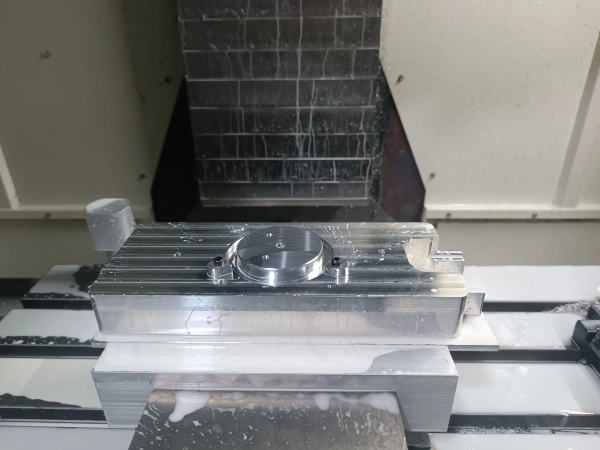

Dovetail clamping in 5-axis machining, allowing full multi-face access in one setup

Our preferred methods include:

• Dovetail fixturing — a small, precise dovetail strip on the stock allows secure gripping while leaving almost the entire part exposed
• riser blocks and quick-change modular systems
• single or dual-setup strategies instead of five or six

Result: dramatically reduced cumulative error, better relative positioning, and faster overall production.

Thin-Walled & Delicate Parts: Vacuum & Magnetic Holding

Thin enclosures, optical bases, and flat panels cannot tolerate side clamping — it causes bowing or stress.

We use vacuum chuck workholding to hold parts flat using only atmospheric pressure:

• zero mechanical distortion
• full top-surface machining in one operation
• ideal for stress-free results in electronics, optics, and medical devices

For ferrous materials, CNC magnetic workholding provides uniform, instant clamping with excellent vibration damping.

Why Custom Workholding Actually Lowers Your Costs

At first glance, custom fixtures seem like extra expense. In reality, they save money through:

• faster setups — quick-change designs cut load/unload time from minutes to seconds
• higher machining parameters — rigid holding supports faster feeds, deeper cuts, shorter cycle times
• much lower scrap — first-time-right parts eliminate waste and rework
• shorter lead times — fewer operations mean parts ship sooner

When you get a quote from Huade, you’re paying for an intelligently engineered process — not just raw machine hours.

Case Study: Medical Housing from Prototype to Production

A client needed a handheld medical device housing with complex ergonomic curves. Their previous supplier used standard vises and delivered scratched, deformed parts with tolerances exceeding 0.05 mm.

Huade’s solution:

1. Full CAD analysis to spot clamping risks early
2. Two-stage custom fixture:
   • Stage 1: secure raw stock for internal features
   • Stage 2: contoured nest holding the interior to finish the cosmetic exterior
3. Outcome: perfect surfaces, zero deformation, smooth scale-up from prototype to production

Choose a Partner That Understands Workholding as Engineering

Advanced CNC machines are widely available. Deep knowledge of CNC workholding is not.

At Dongguan Huade Precision Manufacturing Co., Ltd., we don’t just follow drawings — we analyze the physics of your part and engineer the holding strategy that makes it possible. Whether it’s a one-off prototype or hundreds of precision components in aluminum, stainless steel, titanium, or engineering plastics, our workholding expertise ensures success.

Don’t let fixturing become your bottleneck.

Ready to experience the difference? Visit https://hdproto.com/ and upload your 3D CAD files today. Our engineering team will provide a free DFM review and show exactly how smart CNC workholding can bring your most challenging designs to life — on time, within tolerance, and at competitive cost.
