PTFE (Teflon™)

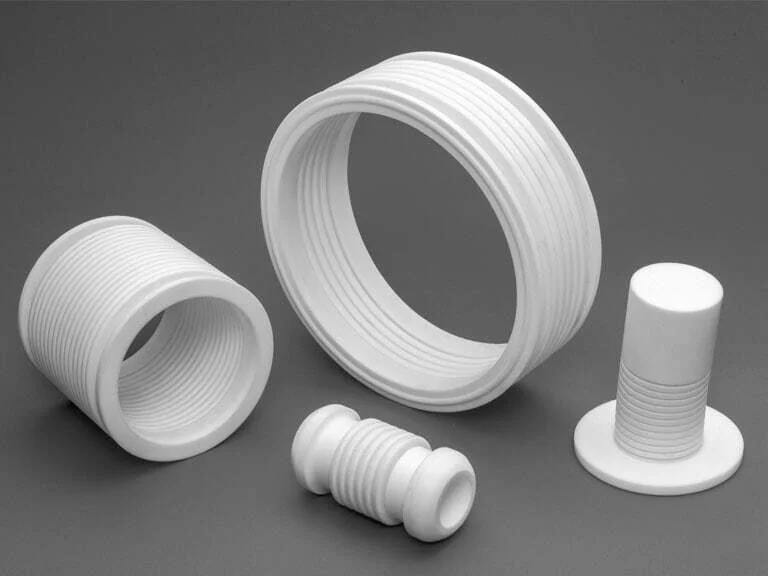

PTFE (Polytetrafluoroethylene), most commonly known by the Chemours trade name Teflon™, offers the lowest coefficient of friction of any solid material. Combined with absolute chemical inertness and a massive operating temperature range, it is the unrivaled choice for precision seals, dry-running bearings, and semiconductor fluid routing.
.BOwkXiOZ_Z1p8XV.webp)
Core Mechanical Properties
PTFE is not a structural plastic. It is incredibly soft and prone to "cold flow" (creeping under pressure). However, its tribological and chemical properties are unparalleled in the engineering world.
| Property | Typical Value | Key Benefit |
|---|---|---|
| Coefficient of Friction | ~ 0.04 to 0.10 | The lowest of any solid. Perfect for dry-running applications where liquid lubricants are prohibited. |
| Chemical Inertness | Absolute | Completely unaffected by virtually all industrial acids, alkalis, and solvents. |
| Continuous Use Temp. | 260°C (500°F) | Maintains its flexibility and non-stick properties from extreme cryogenic lows up to extreme heat. |
| Tensile Strength | 20 - 30 MPa | Very low structural strength. Material will "creep" or permanently deform under continuous mechanical loads. |
Material Comparison: PTFE Blends
To combat PTFE's natural softness and tendency to creep under pressure, it is frequently compounded with various fillers to drastically improve its wear and load-bearing characteristics.
| Material Grade | Visual Appearance | Key Characteristics & Use Case |
|---|---|---|
| Virgin PTFE | Opaque White | 100% pure. FDA compliant. Offers the absolute best chemical resistance, lowest friction, and highest dielectric strength, but suffers from the most cold flow. |
| Glass-Filled PTFE | Off-White / Grey | Typically 15-25% glass fiber. Significantly reduces creep and increases wear resistance. The standard choice for valve seats and high-pressure gaskets. |
| Carbon-Filled PTFE | Black | Contains carbon powder or graphite. Provides excellent dynamic wear resistance, high thermal conductivity (to dissipate friction heat), and anti-static properties. |
Hardcore Industrial Applications
PTFE is deployed where nothing else survives—where extreme chemical washdowns, zero-lubrication environments, and high temperatures intersect.
High-Performance Seals & Gaskets
Precision CNC turned PTFE O-rings, V-rings, and valve seats provide flawless, non-degrading seals in the petrochemical and high-pressure hydraulic industries.
Semiconductor Fluid Manifolds
Because it is absolutely inert, Virgin PTFE is milled into complex fluid blocks and connectors that safely route highly corrosive etching acids during wafer fabrication without contamination.
Self-Lubricating Bearings
Where liquid lubricants would burn off or contaminate the product (like food processing or aerospace), PTFE bushings and slide bearings provide permanent, dry-running lubrication.
Expert Machining Tips
PTFE is arguably the softest engineering plastic we machine. It compresses easily, expands rapidly with heat, and pushes away from tooling. Huade engineers employ specialized setups to combat these issues:
- 1
Managing "Creep" & Workholding
Standard vise clamping will physically crush and permanently deform (cold flow) a PTFE billet. We utilize highly distributed clamping forces, vacuum chucks, and custom-machined soft jaws to secure the material without squeezing it out of tolerance.
- 2
Razor-Sharp Tooling
If a tool is even slightly dull, PTFE will simply flex out of the way instead of cutting, resulting in tapered walls and ruined tolerances. We exclusively use dedicated, ultra-sharp, high-positive-rake end mills designed specifically to shear soft elastomers.
- 3
Temperature Control & Tolerances
PTFE has an exceptionally high coefficient of thermal expansion. The heat generated by cutting, or even a warm shop floor, will cause the part to grow. We strictly machine PTFE in climate-controlled environments and often allow the billet to acclimate before final finishing passes.
Post-Processing & Assembly
PTFE's ultimate non-stick nature dictates how it must be handled during assembly and final finishing.
1. As-Machined Finish
PTFE naturally cuts to an incredibly smooth, slippery surface. It cannot be painted, plated, or chemically polished. The as-machined finish is almost exclusively the final surface state.
2. Assembly Limitations (No Glue)
Teflon™ is famous for a reason—absolutely nothing sticks to it. Adhesives and epoxies are useless. Furthermore, tapping threads directly into pure PTFE is generally avoided as they easily strip under load. We recommend designing for compressive press-fits or using metal threaded inserts.
3. Stress Relieving (Annealing)
Because it is formed via powder compression rather than extrusion, raw PTFE billets hold massive internal stresses. To hold tight tolerances without post-machining warpage, we often perform strict thermal annealing cycles in specialized ovens.
