Accelerate your product development with our advanced 3, 3+2, and 5-axis CNC milling centers. From rapid prototypes to high-volume production, we deliver tight tolerances, complex geometries, and superior surface finishes.

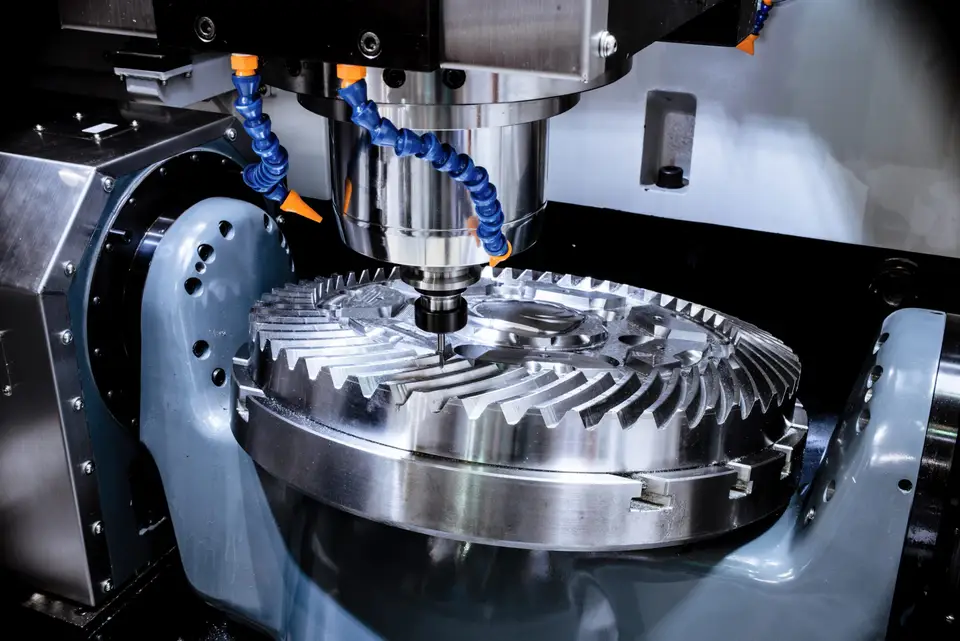

CNC (Computer Numerical Control) milling is a highly precise subtractive manufacturing process. It utilizes computerized controls and rotating multi-point cutting tools to progressively remove material from a solid workpiece to produce a custom-designed part.
Unlike turning where the workpiece spins, in milling, the material remains stationary while the high-speed cutting tool moves across multiple axes (typically 3, 4, or 5 axes). This allows for the creation of complex geometries, slots, and detailed surface finishes.
Review the recommended and technically feasible values for the most common features encountered in CNC machined parts to optimize your design for manufacturability (DFM).
| Feature | Recommended Size | Feasible Size |
|---|---|---|
| Min. feature size | Ø 2.5 mm | Ø 0.50 mm |
| Internal edges | R 8 mm | R 0.25 mm |
| Minimum wall thickness | 0.8 mm (Metals) 1.5 mm (Plastics) | 0.5 mm (Metals) 1.0 mm (Plastics) |
| Holes | Standard drill sizes Depth: 4 x dia. | Dia: Ø 0.5 Depth: 10 x dia. |
| Threads | Size: ≥ M6 Length: 3 x dia. | Size: M2 |
| Milling Setup | Soft Metals & Plastics | Hard Metals (Steel, Ti) |
|---|---|---|
| 3-Axis Milling | 2000 x 1500 x 200 mm or 1500 x 800 x 500 mm | 1200 x 800 x 500 mm |
| 3+2 Axis Milling | 600 x 800 x 100 mm (For all materials) | |
| 4-Axis Milling | 600 x 800 x 100 mm (For all materials) | |
| 5-Axis Milling | 600 x 800 x 100 mm (For all materials) | |
* 3-axis and 3+2 axis machines have the lowest start-up costs for simple geometries. 5-axis centers can produce parts with more complex geometries requiring fewer machine setups.
Aluminum, Stainless Steel, Titanium, Brass, and Copper. Ideal for high-strength, thermal-conductive, and critical structural components.
Explore MetalsABS, POM (Delrin), PEEK, Polycarbonate, and PTFE. Engineered for low weight, electrical insulation, and superior chemical resistance.
Explore PlasticsFrom structural industrial frames to highly intricate micro-components, our machinery is calibrated for absolute precision across all materials.
These metal parts highlight the versatility of custom CNC machined parts in producing complex, multi-featured components with clean edges and tight dimensions. Ideal for applications in automation, robotics, instrumentation, and mechanical structures.
Send Your Project Details
High-precision aluminum components engineered for complex robotics with demanding threaded features.
Custom machined collars and intricate mechanical assemblies designed for secure automotive fitments.

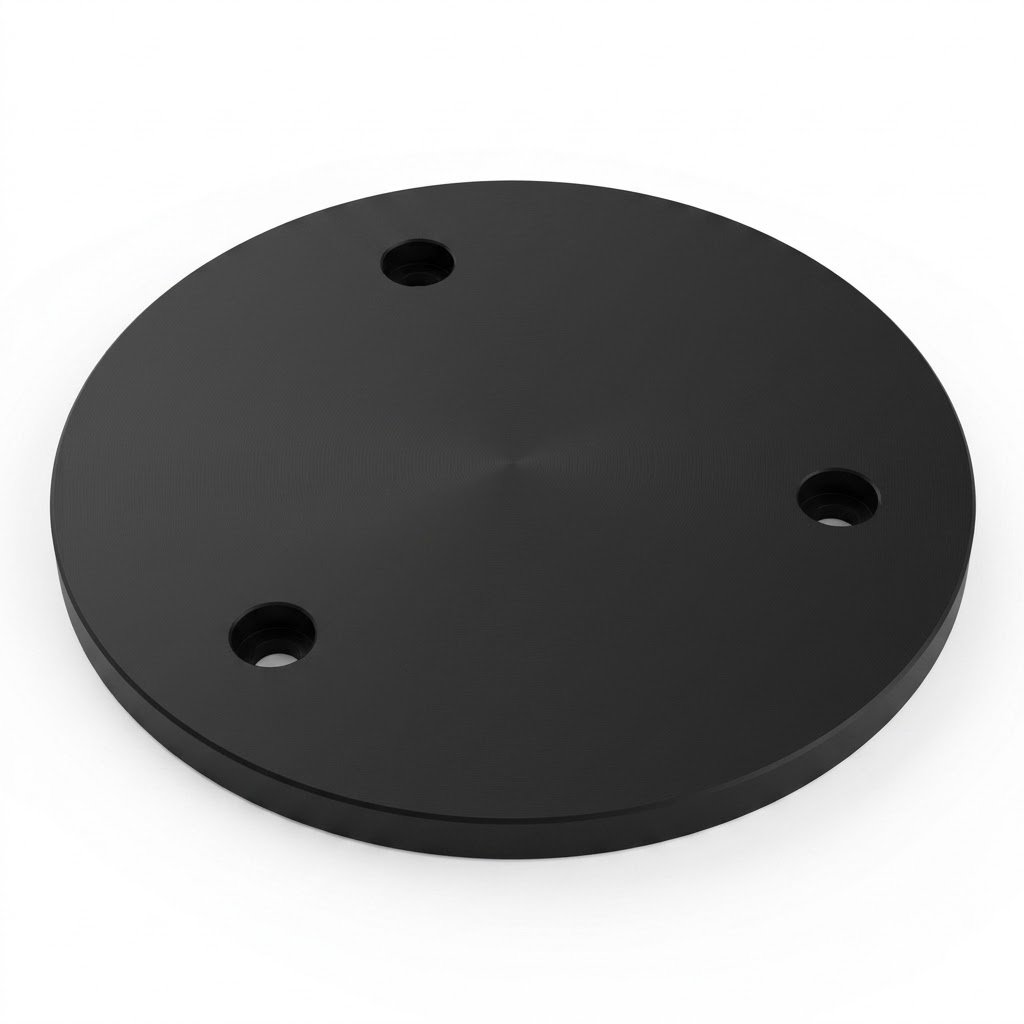

Robust structural parts with black oxidized finishes built to withstand high stress in industrial applications.
Projects where milled geometry, visible surfaces, tight tolerances, fixture strategy, or multi-process supply shaped the manufacturing route.
A full visible 6061 aluminum component set combining CNC machining, black baking paint, Ferrari red automotive paint, mirror polishing, and chrome plating.
A 4+ year supply relationship built on cosmetic control for thin long curved speaker parts, bare 7075 and 5074 deliveries, and scratch-free visible surfaces.
Since 2018, Huade has supported PEEK grinder parts, brass and SS316 brewing parts, and aluminum sheet metal housings from prototype to repeat production.
How Huade delivered 5 custom 7075 hollow drone fasteners in 7 days at +/-0.01 mm tolerance before a major drone exhibition.
Give buyers and engineers a faster way to shortlist materials, compare finish options, and confirm thread callouts before files go to quote.
Compare common CNC metals and plastics by strength, corrosion resistance, weight, finish compatibility, and budget.
Open ToolNarrow anodizing, passivation, polishing, powder coating, sandblasting, and other finish options for machined parts.
Open ToolCheck common metric, UNC, UNF, and NPT thread references before machining drawings or RFQ review.
Open ToolEverything you need to know about starting your custom CNC milling project with Huade Precision.
Simply send us your 3D CAD files (STEP, IGES, STL) and 2D drawings through our Quote page. Our engineering team will perform a free Design for Manufacturability (DFM) review and provide a detailed, competitive price for your precision machined components within 24 hours.
For rapid prototyping, we can deliver parts in as little as 3-5 days. For high-volume 3-axis and 5-axis CNC machining production runs, timelines depend on geometric complexity and material availability, typically ranging from 1 to 3 weeks.
Our state-of-the-art 5-axis CNC machining centers can hold standard tolerances of ± 0.05 mm (ISO 2768-m), and up to ± 0.01 mm for high-precision demands in aerospace, medical, and automotive CNC parts.
Send us your CAD models (STEP, IGES, X_T) today. Our engineers will review your design and get back to you with pricing and manufacturing feedback instantly.
* Strict Non-Disclosure Agreements (NDA) available upon request to protect your IP.
