Confirm the brass alloy
Alloy choice affects machinability, corrosion performance, regulatory needs and plating behavior. Name the grade instead of using brass as a generic callout.
Connectors, fittings and inserts

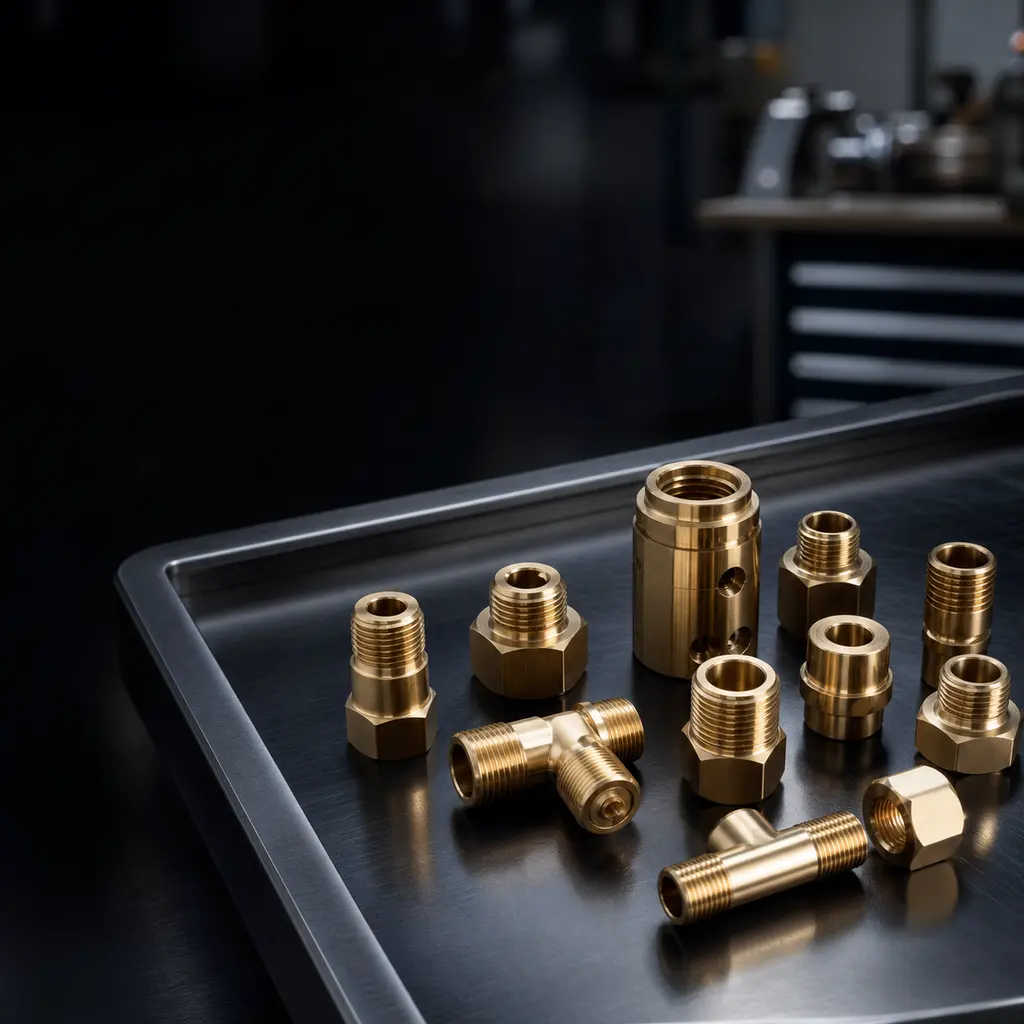

Custom Brass Turned Parts for Precision Assemblies
HDProto manufactures brass turned parts for components where machinability, corrosion resistance and electrical or fluid-handling performance must work together. Typical requirements include threads, small diameters, sealing features, controlled concentricity and post-machining plating.
Request a quoteWhen this service is the right fit
This page addresses part-specific brass turning needs; it complements, rather than replaces, our broader brass material-machining guidance.
Project support
- ✓Turned brass fittings, inserts, pins, sleeves, adapters and connector bodies
- ✓Threading, drilling, boring, knurling and secondary milling where required
- ✓Support for plating and surface-finish specifications
- ✓Inspection planning for threads, diameters, concentricity and sealing interfaces
Manufacturing route
How we plan the work
Establish functional datums
Threads, bores and sealing faces are related to the datum that matters in the mating assembly, not simply to the easiest diameter to inspect.
Select the turning route
The route combines bar work, chucking, drilling, boring and live tooling based on the part’s geometry and quantity.
Verify fit-critical features
Measurements focus on thread standard, minor and major diameters, concentricity, bore condition and any plating allowance.
Brass turning details that affect part performance
Thread callouts should include the standard, class and any gauge requirement. A nominal thread description alone does not define acceptance.
For sealing parts, identify the sealing land, surface-finish requirement and the relationship between bore, port and face.
Plating can be functional as well as cosmetic. Define coating type, thickness range and surfaces to mask before machining so fits and electrical contacts are protected.
Part requirements determine the process plan.
Application decisions
Details that make the page actionable
Connector and contact bodies
Electrical and signal components commonly depend on controlled bore condition, thread engagement, contact surfaces and a plating specification. The RFQ should distinguish cosmetic plating from a functional contact or corrosion requirement.
Fluid and pneumatic fittings
A fitting drawing should identify the thread standard, sealing strategy, port geometry and pressure-test requirement. These relationships matter more than a generic “brass fitting” label.
Secondary features on rotational parts
Cross holes, flats, slots and drive features change both setup and inspection. Include their datum relationship to threads or bores so the manufacturing route can protect the functional orientation.
Engineering decision matrix
What to decide before the RFQ is released
These are the inputs that change process routing, inspection effort and the usefulness of the completed part. They are not universal specifications; the drawing and service environment remain the source of acceptance requirements.
| Decision | What to review | Risk if omitted | Useful RFQ input |
|---|---|---|---|
| Brass alloy | Match machinability, corrosion exposure, lead-content requirements and plating behavior to the application. | A generic brass callout can select an alloy unsuited to water exposure, compliance needs or the finish route. | Name the grade and any material certificate or compliance requirement. |
| Thread and mating interface | Define standard, class, gauge requirement and the feature used as the functional datum. | A nominal thread note alone does not establish acceptance or orientation to a port or bore. | Provide thread callout, mating component details and any gauge or leak-test requirement. |
| Sealing or electrical surface | Identify seal lands, contact zones, roughness needs and surfaces that must remain uncoated. | Late finish decisions can change fit, conductivity or sealing behavior. | Mark functional surfaces, roughness targets, plating type and masking boundaries. |
| Secondary milling features | Plan flats, cross holes, slots and drive features relative to turned datums. | Unspecified orientation can lead to an acceptable-looking part that does not clock correctly in assembly. | Dimension secondary features from the relevant thread, bore or locating face. |
Frequently asked questions
What brass parts are suited to CNC turning?
Fittings, threaded inserts, connector shells, valve components, adapters, pins, sleeves and small precision bodies are common applications when the geometry is predominantly rotational.
Can brass turned parts include milling features?
Yes. Flats, cross holes, slots and drive features can be added with live tooling or secondary machining when the part design requires them.
Should plating be specified before machining?
Yes. Coating type and thickness can affect fit, conductivity and masking decisions, especially on threads, contact surfaces and precision bores.
