drone arm CNC mounts
Drone Arm CNC Mounts
Arm connectors need repeatable bolt position, clean hinge or clamp datums, and enough corner radius to avoid stress concentration without adding unnecessary mass.

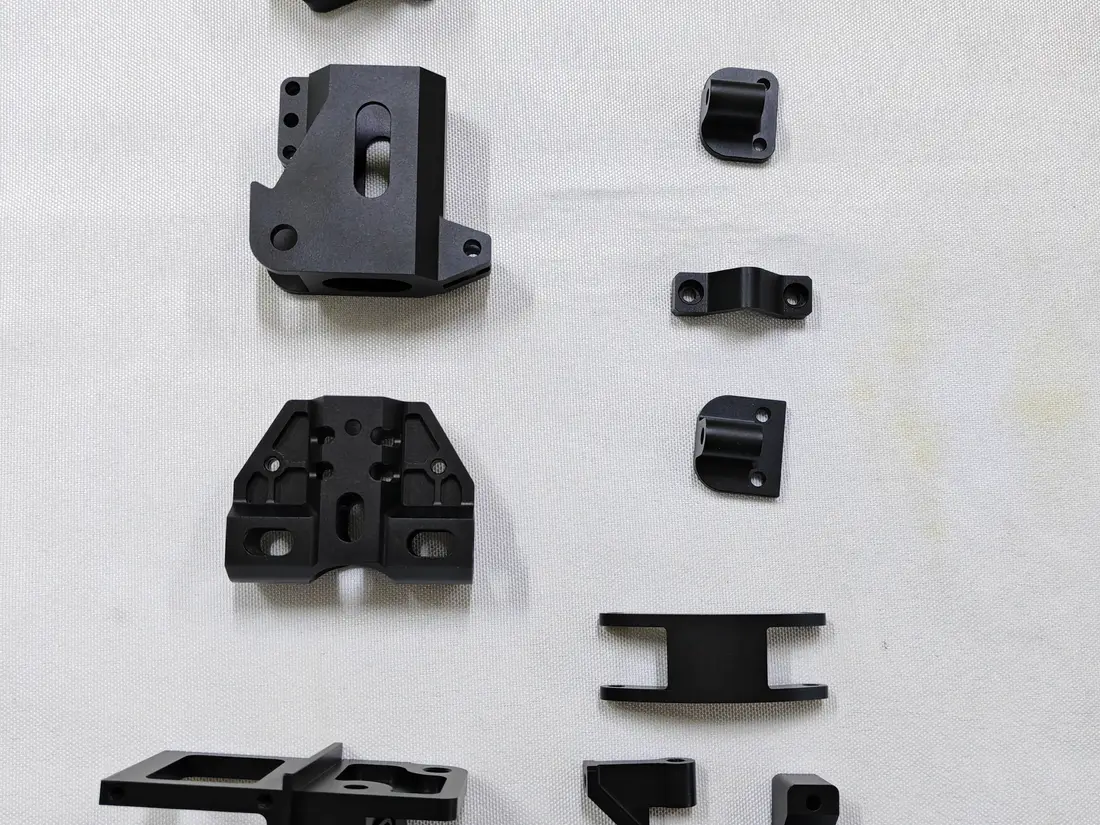

UAV CNC Machined Components CNC UAV Drone Parts
CNC UAV Drone Parts
Built for Stable Flight
HDProto machines custom UAV parts for drone frames, arm mounts, center plates, motor seats, gimbal brackets, landing structures, and precision fasteners. We focus on lightweight 6061 and 7075 aluminum, tight mounting datums, vibration control, burr-free edges, and anodized finishes that keep professional drones easy to assemble and repeatable in flight.
Arm Mounts, Gimbal Brackets, Center Plates
UAV Parts Blog Hub
CNC Drone Parts Buyers Search For
This page is built around practical UAV manufacturing searches: UAV CNC machined components, custom UAV machined parts, drone arm CNC mounts, and gimbal bracket CNC machining. We keep the message specific to metal CNC machining; carbon fiber machining is not listed as a current production service.
gimbal bracket CNC machining

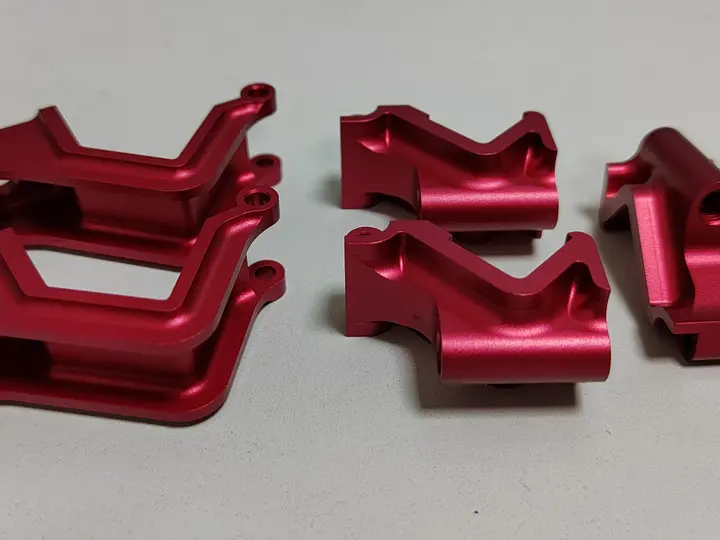

Gimbal Bracket CNC Machining
Payload and camera brackets depend on flat mounting faces, controlled hole spacing, surface finish consistency, and anodize masking where fitted surfaces cannot grow.
custom UAV machined parts

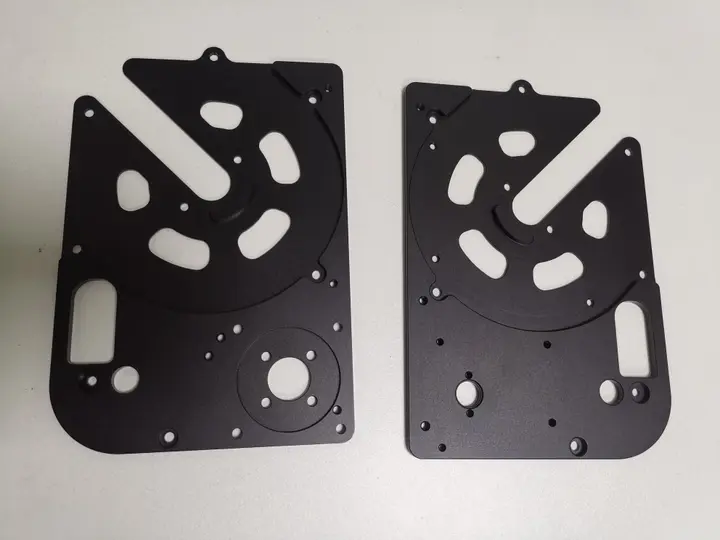

UAV Center Plates
Center plates tie propulsion, battery, payload, and landing structures together, so pocket depth, datum strategy, and symmetric weight removal matter as much as tolerance.
Engineering Focus
Make the RFQ About Flight Risk
For UAV structural parts, the quote should not only ask for a low part price. It should define which bores locate motors, which faces mount payloads, which pockets remove weight, and which edges must stay clean for cables or battery straps.
Read CNC Drone Components Blog| Common materials | 6061-T6, 7075-T6, 2024 aluminum, stainless steel for selected pins or fasteners |
|---|---|
| Typical CNC features | Lightweight pockets, counterbores, threaded holes, dowel datums, bearing seats, cable slots |
| Critical controls | Hole position, face flatness, parallelism, edge breaks, matched left/right weight consistency |
| Surface finishes | Clear anodizing, black anodizing, hard anodizing, bead blasting, passivation for stainless steel |
UAV Component Examples
Drone Parts That Lead to RFQs
These examples match the low-difficulty, high-intent search direction from the CNC UAV keyword plan while staying close to real machined parts.
Drone Arm Mounts
CNC machined connectors, hinge blocks, clamp mounts, and folding arm hardware for repeatable alignment and controlled weight.
Motor Seats and Payload Mounts
Flat, rigid mounting interfaces for propulsion and payload systems where hole position, parallelism, and vibration control affect flight stability.

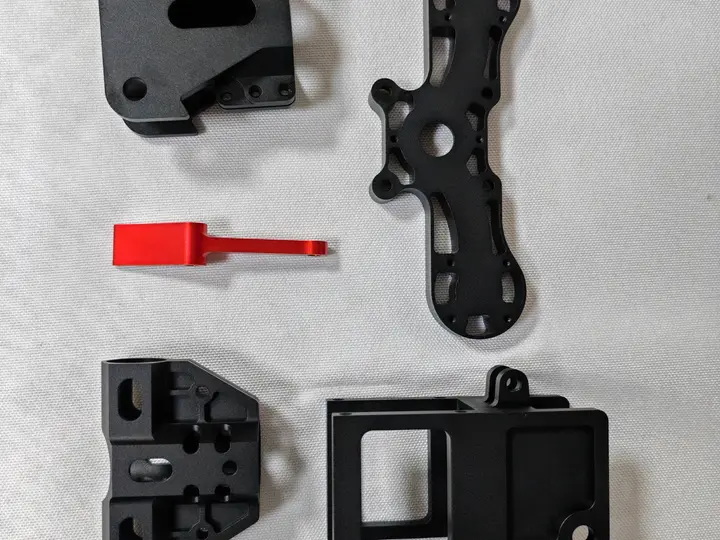

UAV Fasteners and Inserts
Precision aluminum and stainless hardware for lightweight assembly, field service, and repeatable fastening in small UAV production runs.
CNC Capabilities
Manufacturing Routes for UAV Hardware
3-Axis and 5-Axis CNC Milling
Milling for lightweight UAV plates, arm mounts, motor seats, gimbal brackets, and pocketed aluminum structures.
Explore Milling
Anodized UAV Finishes
Clear, black, and hard anodizing planned around fitted bores, threads, cosmetic faces, corrosion resistance, and wear.
Explore Anodizing

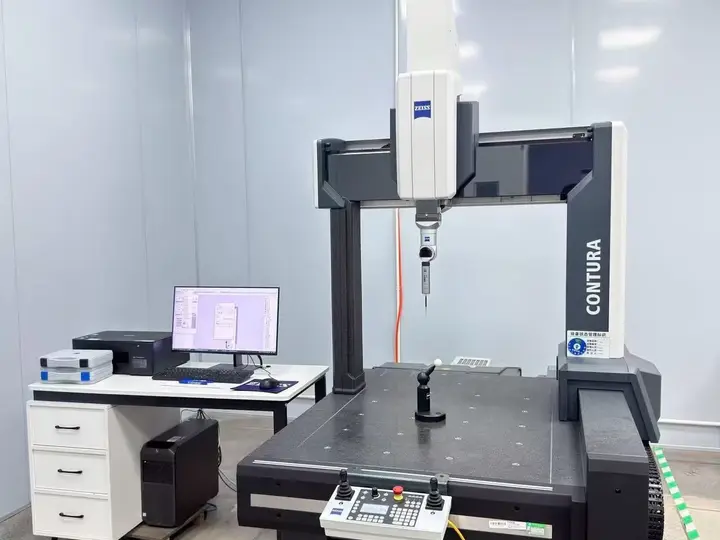

Inspection for Flight Hardware
CMM, gauges, and shop-floor checks for hole position, flatness, matched components, and critical assembly datums.
Explore Quality RFQ Direction
Turn UAV Blog Traffic Into CNC Quotes
The goal of this hub is simple: bring Google users searching for CNC drone parts into a focused path, then move them toward a quote for real machined UAV hardware. Send the manufacturing package with the points below and we can review machining route, tolerance risk, finish, and lead time.
- STEP or X_T files plus 2D drawings for critical UAV interfaces
- Material grade, quantity, target weight, and surface finish
- Marked motor, gimbal, arm, center plate, and payload mounting datums
- Notes for anodize masking, threaded inserts, burr-sensitive edges, and assembly tests
Quote Notes
- Prototype runs can prioritize speed and fit checks before cosmetic finish.
- Low-volume batches should lock datum strategy early to avoid matched-part drift.
CNC Machined Drone Components
A broad guide to UAV components, materials, tolerances, and custom CNC manufacturing.
CNC Machined Structural Drone Parts
Frame, arm, mount, and structural hardware guidance for professional drone platforms.
Drone Components Guide
A supporting article for buyers comparing drone component functions and CNC use cases.
Buyer Questions
CNC UAV Parts FAQ
What UAV drone parts can be CNC machined?
Common CNC machined UAV parts include drone arm mounts, folding arm connectors, center plates, motor mounts, gimbal brackets, payload brackets, landing gear hardware, spacers, inserts, and precision fasteners.
Which materials are best for custom UAV machined parts?
6061-T6 and 7075-T6 aluminum are common for lightweight UAV structures. Stainless steel is used selectively for pins, shafts, fasteners, or high-wear interfaces. Surface finish and weight targets should be defined before quoting.
Do you machine carbon fiber drone parts?
This page focuses on metal CNC machining for UAV parts. Carbon fiber machining is not listed as a current production service, but metal inserts, brackets, mounts, and aluminum interfaces for carbon-fiber drone assemblies can be reviewed.
