4th Axis Milling | High Precision CNC Machine Setup
4th Axis High Precision
CNC Machine Milling
Huade uses 4-axis CNC machining to reduce setup time, hold tight datum relationships, and produce complex parts with clean surface finishes. It is ideal when a 3-axis machine needs too many re-clamps but full 5-axis motion is not required.
Process Overview
What is 4 axis CNC machine?
A 4 axis CNC machine is a milling center with three linear axes and one rotary axis. The extra rotation is often called the A axis. Instead of taking a part off the fixture, turning it by hand, and cutting again, the fourth axis rotates the workpiece under CNC control.
This makes 4-axis cnc machining a practical step between 3-axis milling and 5-axis machining. It is strong for parts with side holes, radial slots, wraparound contours, repeated faces, or features that must stay aligned around a centerline.
For a complexity part such as a compact bracket, manifold, connector housing, or turbine blade detail, fourth axis milling can cut several faces in one clamping. That means less manual handling, better repeatability, and shorter setup time.
| Axis motion | X, Y, Z + rotary A-axis |
| Typical tolerance | +/- 0.01 mm for high precision features |
| Best fit | Multi-side parts, radial holes, slots, turbine blades, rotary contours |
| Setup benefit | Fewer re-clamps than a 3-axis machine |
A-Axis Explained
What are the 4 axis on a CNC machine?
The first three axes are X, Y, and Z. They move the tool left-right, front-back, and up-down. The fourth axis rotates the part. On many milling centers this fourth axis is called the A axis because it rotates around the X axis.
A 3-axis machine can cut the top face and accessible side features after re-fixturing. A 4-axis setup indexes or rotates the part so the tool reaches more surfaces while the original datum stays controlled.
X
Left / Right
Linear travel across the part width.
Y
Front / Back
Linear travel across the part depth.
Z
Up / Down
Tool height and cutting depth control.
A
Rotary Axis
The fourth axis rotates the workpiece for indexed or continuous milling.
4-Axis Milling Data
4-Axis CNC Milling Design Guidelines
These values match Huade's CNC milling capability data and help engineers check whether a part is suitable for fourth axis milling before sending an RFQ.
Feature Capabilities
| Feature | Recommended Size | Feasible Size |
|---|---|---|
| Min. feature size | Dia. 2.5 mm | Dia. 0.50 mm |
| Internal edges | R 8 mm | R 0.25 mm |
| Minimum wall thickness | 0.8 mm (Metals) 1.5 mm (Plastics) | 0.5 mm (Metals) 1.0 mm (Plastics) |
| Holes | Standard drill sizes Depth: 4 x dia. | Dia: 0.5 mm Depth: 10 x dia. |
| Threads | Size: >= M6 Length: 3 x dia. | Size: M2 |
Max Part Size by Axis
| Milling Setup | Soft Metals & Plastics | Hard Metals (Steel, Ti) |
|---|---|---|
| 3-Axis Milling | 2000 x 1500 x 200 mm or 1500 x 800 x 500 mm | 1200 x 800 x 500 mm |
| 3+2 Axis Milling | 600 x 800 x 100 mm (For all materials) | |
| 4-Axis Milling | 600 x 800 x 100 mm (For all materials) | |
| 5-Axis Milling | 600 x 800 x 100 mm (For all materials) | |
* 3-axis and 3+2 axis machines have the lowest start-up costs for simple geometries. 4-axis milling is selected when rotary A-axis access can reduce setup time or improve alignment. 5-axis centers support more complex geometries requiring fewer machine setups.
Choosing the Right Setup
4-Axis CNC Machining vs 3-Axis and 5-Axis
The best CNC route depends on geometry, tolerance stack-up, surface access, and cost. Four axis milling often gives the best balance when the part has features around several sides but does not need full simultaneous 5-axis motion.
| Setup | Best Use | Cost / Time Impact | Typical Parts |
|---|---|---|---|
| 3-Axis Machine | Flat faces, pockets, holes, and simple prismatic parts. | Lowest programming cost, but more re-clamping for side features. | Plates, simple brackets, flat housings. |
| 4-Axis CNC Machining | Multi-side features, radial holes, wrapped contours, and A-axis indexing. | Reduces setup time and improves alignment without full 5-axis cost. | Turbine blades, manifolds, robotics joints, electronic enclosures. |
| 5-Axis CNC Machining | Deep undercuts, compound angles, sculpted surfaces, and continuous tool-axis control. | Highest flexibility, higher programming and machine time. | Impellers, medical implants, aerospace structures. |
Application Fit

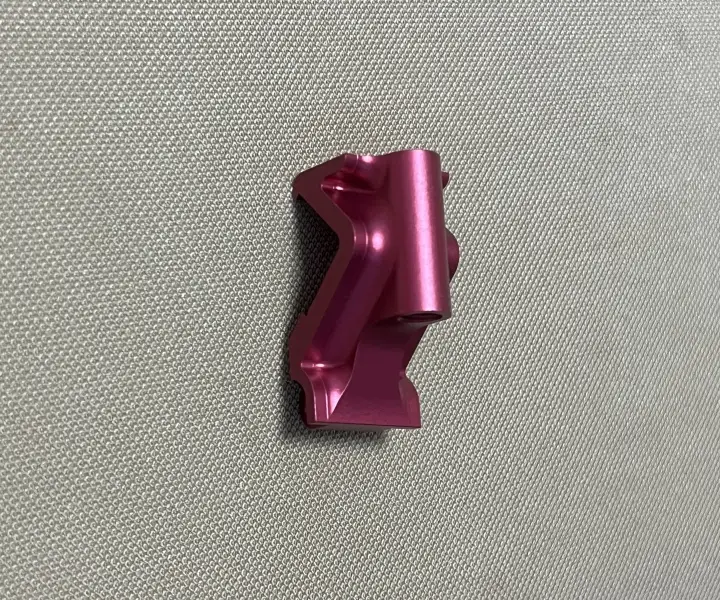

Turbine Blades & Curved Parts
The fourth axis keeps the part rotating while the cutter reaches wrapped surfaces, blade roots, and repeated radial features.
View Industry
Application Fit
Medical & Instrument Housings
Four-side milling supports tight datum control for compact parts with ports, pockets, and cosmetic surface finishes.
View Industry
Application Fit

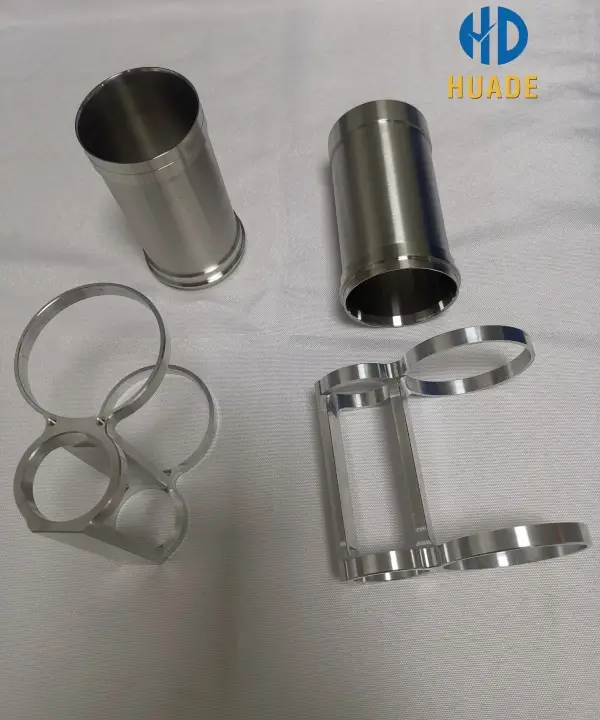

Precision Electronic Enclosures
A-axis indexing reduces setup time for thin-wall aluminum housings with side holes, connector slots, and visible faces.
View Industry
Capability Details

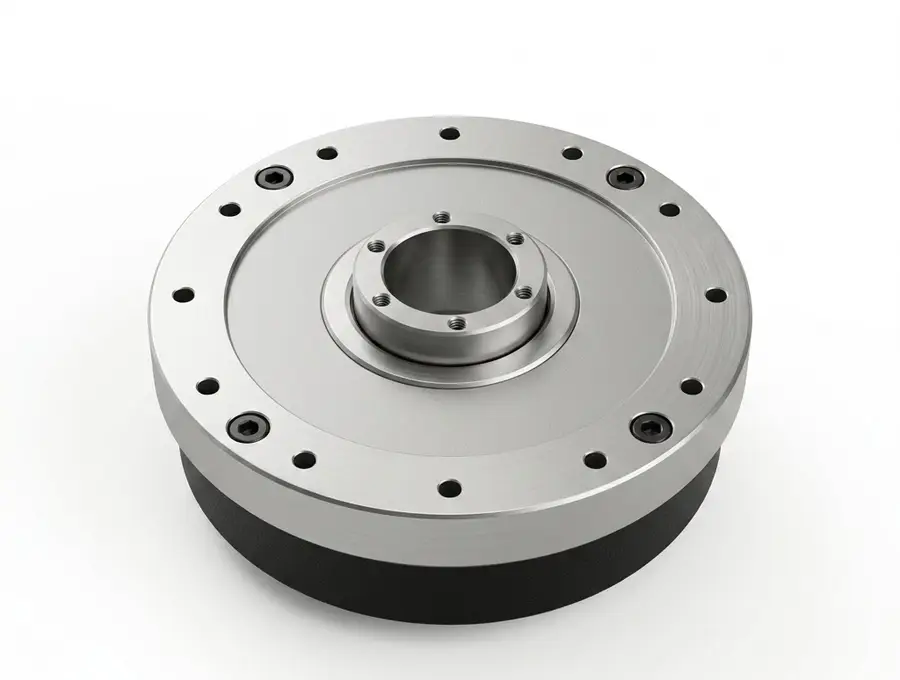

High Precision Parts, Controlled Surface Finishes
Fourth axis milling is useful when side features must line up with top features. Huade engineers review the datum plan, clamping risk, cutter access, and finish requirements before we choose 3-axis, 4-axis, or 5-axis machining.
After machining, parts can move into in-house surface finishes such as anodizing, sandblasting, black oxide, polishing, and laser etching. This keeps cosmetic and dimensional control in one workflow.
CNC Machining Metals
Aluminum, stainless steel, titanium, brass, copper, and alloy steel for structural, cosmetic, thermal, and close-tolerance CNC parts.
Explore MetalsCNC Machining Plastics
PEEK, POM, nylon, PTFE, ABS, polycarbonate, and other engineering plastics for lightweight precision components.
Explore PlasticsReal Project References
More Case Studies
4-Axis CNC Machining Case Studies
Related projects where multi-side milling, aluminum surfaces, robotic features, UAV components, tooling, or fixture strategy shaped the manufacturing route.
Premium Audio
6061 Aluminum Audio System Components for a German Premium Brand
A full visible 6061 aluminum component set combining CNC machining, black baking paint, Ferrari red automotive paint, mirror polishing, and chrome plating.
6061 AluminumPaint + ChromePremium Audio
Read Case
Audio Components
High-Appearance 7075 Bare Parts for a German Audio Components Company
A 4+ year supply relationship built on cosmetic control for thin long curved speaker parts, bare 7075 and 5074 deliveries, and scratch-free visible surfaces.
7075 AluminumBare Finish4+ Years
Read Case
Coffee Machine
One-Stop Component Supply for a Well-Known Italian Coffee Machine Manufacturer
Since 2018, Huade has supported PEEK grinder parts, brass and SS316 brewing parts, and aluminum sheet metal housings from prototype to repeat production.
PEEK + Brass + SS316Sheet MetalSince 2018
Read Case
Engineering Tools
Useful calculators before RFQ
Give buyers and engineers a faster way to shortlist materials, compare finish options, and confirm thread callouts before files go to quote.
Material Selector
Compare common CNC metals and plastics by strength, corrosion resistance, weight, finish compatibility, and budget.
Open ToolSurface Finish Selector
Narrow anodizing, passivation, polishing, powder coating, sandblasting, and other finish options for machined parts.
Open ToolTap Drill Calculator
Check common metric, UNC, UNF, and NPT thread references before machining drawings or RFQ review.
Open Tool Get Your Answers
4-Axis CNC Machining FAQs
Clear answers for engineers comparing fourth axis milling with 3-axis and 5-axis machining.
How does a 4-axis CNC milling machine work?
A 4-axis CNC milling machine moves the cutting tool along X, Y, and Z while the workpiece rotates on a fourth axis. This rotary axis is usually called the A axis. It lets the machine mill several sides of a part in one setup, which can reduce setup time and improve feature alignment.
What is the difference between the 4-axis and 5-axis CNC?
A 4-axis CNC machine adds one rotary axis to the normal 3-axis machine. A 5-axis CNC machine adds two rotary directions, so it can approach more complex angles and undercuts. For many prismatic parts, shafts with milled features, brackets, and housings, 4-axis cnc machining is more efficient and less costly than 5-axis machining.
What is the forth axis on a CNC machine?
The fourth axis is the rotary axis added to the X, Y, and Z linear axes. On many milling machines it is called the A axis because it rotates around the X axis. This controlled rotation helps machine radial holes, slots, pockets, wrapped surfaces, and repeated features around a part.
What's a 4 Axis CNC router?
A 4 Axis CNC router is a router-style CNC machine with an added rotary axis. It is often used for wood, foam, plastic, or light aluminum shapes. Huade focuses on industrial 4-axis CNC milling for high precision metal and engineering plastic components rather than hobby router work.
