Identify the functional features
The review starts with what must fit, seal, rotate, locate or remain aligned—not with a generic promise of the smallest possible tolerance.
Fit-critical components and inspection planning
Tight-Tolerance CNC Machining Built Around Functional Datums
Tight tolerance is not a single number applied to every feature. Huade reviews the material, geometry, datum scheme, process route, finish and inspection method together so the tolerance callouts reflect how the part must fit and function.
Upload CAD for Engineering ReviewInspection method
CMM dimensional verification
Drawing language
GD&T + functional datums
Quality support
FAI, MTC and finish checks
The short answer
What this service is designed to solve
Tight-tolerance CNC machining is appropriate when a dimension, form or feature relationship controls assembly, sealing, motion, optical alignment or repeatability. The strongest RFQ identifies critical-to-function features, defines their datums and states how the completed part should be measured; a blanket tight tolerance on every surface usually adds cost without improving performance.
Manufacturing route
How engineering decisions move into production
Build the datum and process plan
Datums, workholding, tool access and operation sequence are considered together so the manufacturing route protects the relationships that matter.
Account for material and finish
Aluminum, stainless steel, titanium and engineering plastics respond differently to heat, stress, moisture and finishing. Those effects belong in the tolerance discussion.
Measure against the drawing intent
CMM, optical, roughness and material checks are selected according to feature type and documentation needs. The inspection method should match the tolerance definition.
Engineering decisions that affect the result
A tight size tolerance is not the same as good alignment
A hole can be within its size limit and still be in the wrong position. Position, flatness, perpendicularity, parallelism and profile callouts can describe function more accurately than tightening every linear dimension.
Inspection must be planned before machining
If a feature is critical, define its datum reference, measurement method and report requirement in the drawing or RFQ. This prevents a late disagreement over whether a caliper, gauge, optical system or CMM is appropriate.
The completed part is the acceptance object
Anodizing, plating, passivation, polishing and other finishes can affect dimensions or surfaces. When a feature is fit-critical, state whether it must be measured before finishing, after finishing, or at both stages.
Evidence from the shop floor
What the process looks like in practice
Controlled inspection environment

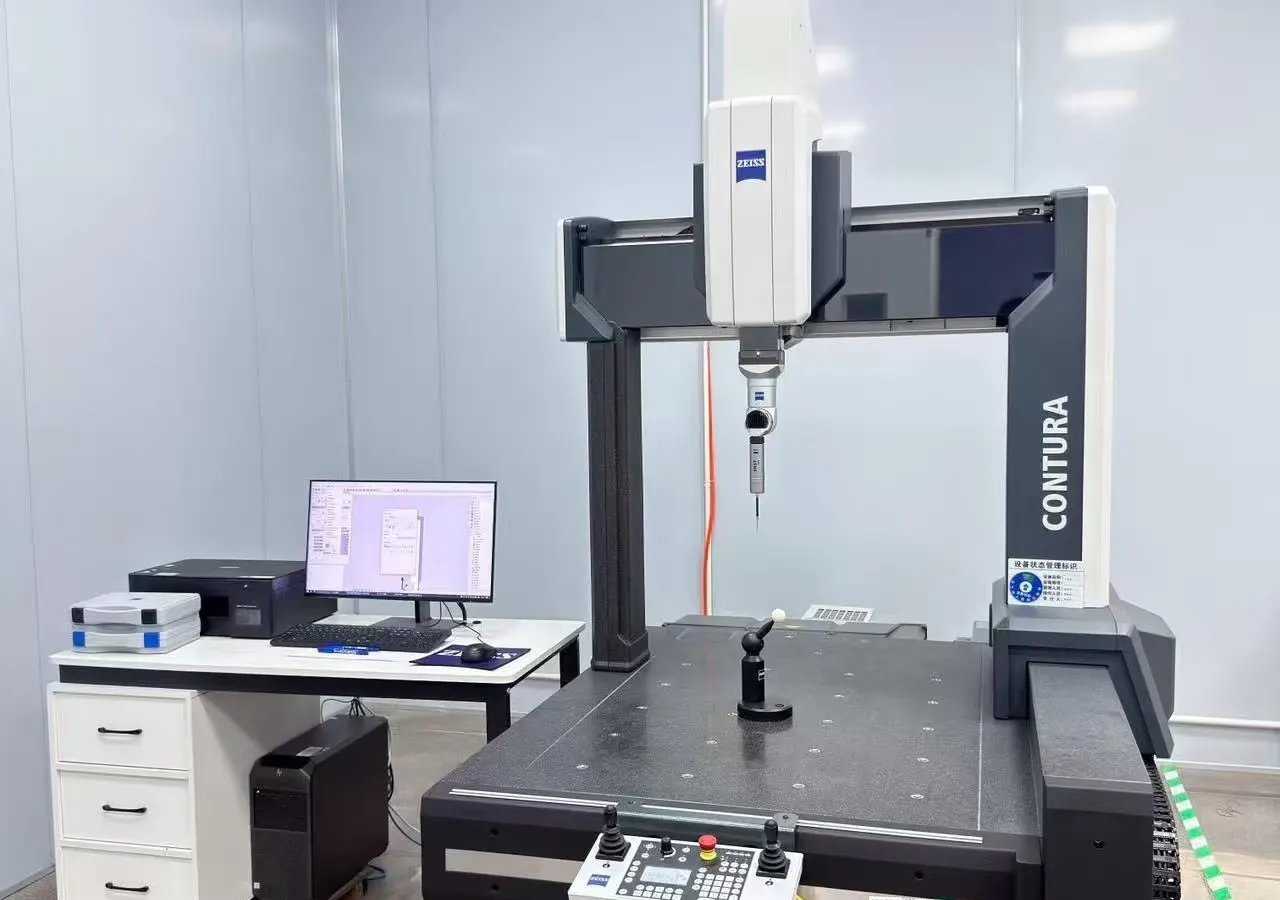

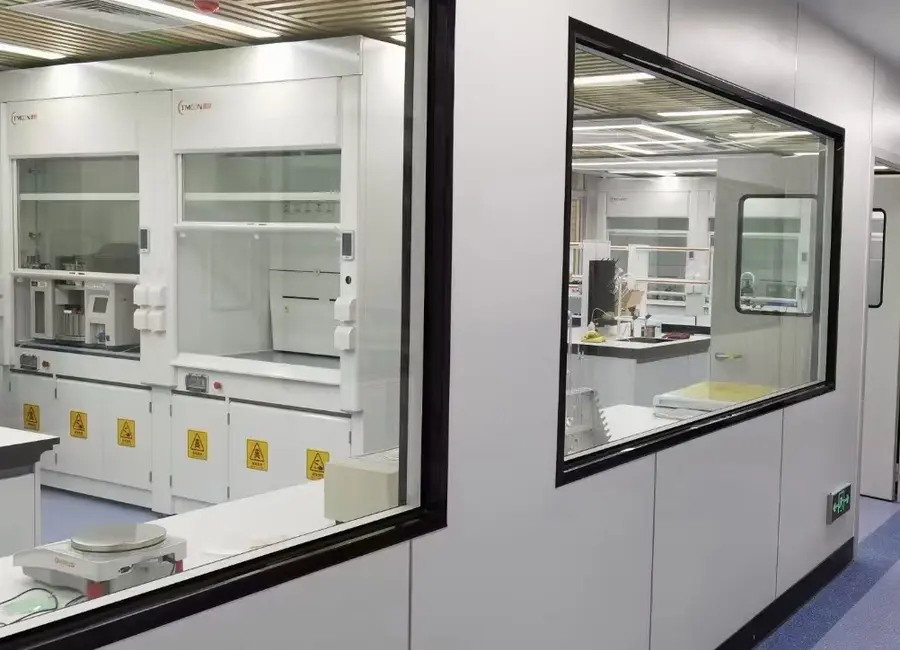

A quality process needs a defined inspection route and clear acceptance criteria, not only a machine capability statement.
Surface condition matters

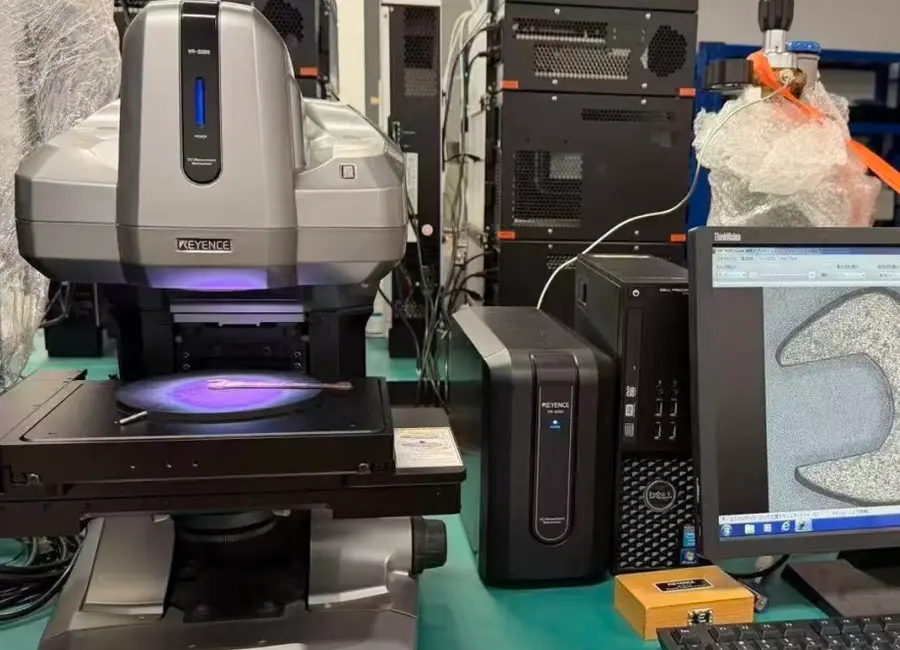

Roughness can affect sealing, sliding, appearance and corrosion behavior, so the drawing should identify functional surfaces and targets.

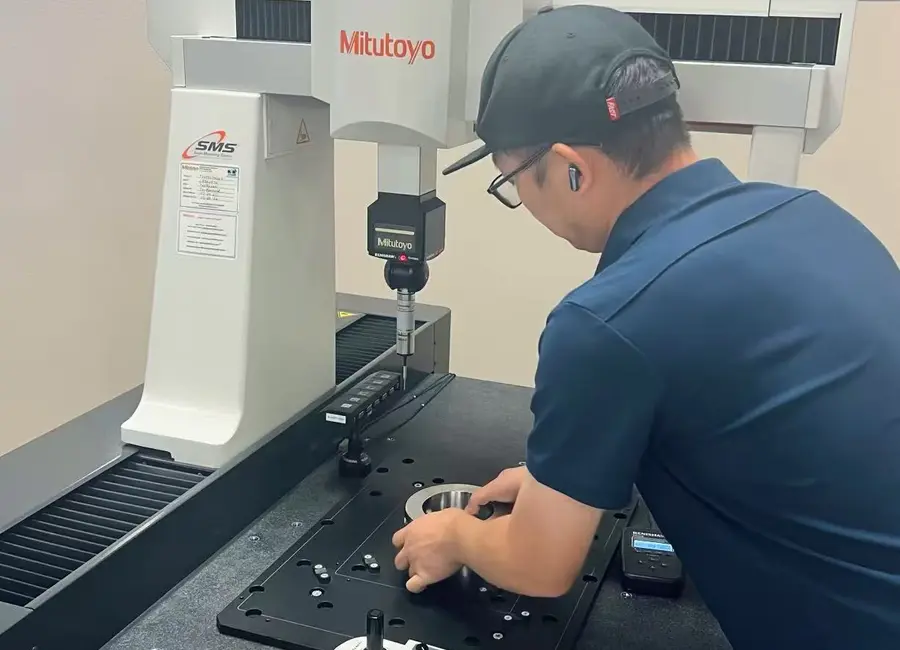

Engineering review before release
A complete RFQ lets engineering connect drawing intent, process route and inspection evidence before production starts.
Prepare a reviewable RFQ
The more clearly the drawing communicates function, the more useful the first engineering response will be.
- ◆3D CAD model, dimensioned drawing and revision-controlled PDF.
- ◆Critical-to-function features, datum reference frame and GD&T callouts.
- ◆Material grade, heat treatment or condition, finish and measurement state.
- ◆Required CMM/FAI/MTC documents, gauge expectations, quantity and delivery target.
